Representation of a Fiber Diffraction / Grazing Incidence pattern¶

As with fibers, during a grazing-incidence scattering experiments (GIWAXS, GISAXS) on a thin film, a fiber symmetry is usually considered¶

Inside a fiber, there is a vertical axis with specific crystalline planes while the radial axis are equivalent

The same way, for a thin film, it is common to split the q vector in a vertical component (along the thickness axis) and an in-plane component

[1]:

from pyFAI.calibrant import get_calibrant
from pyFAI.detectors import RayonixLx255, Pilatus1M
from pyFAI.azimuthalIntegrator import AzimuthalIntegrator
from pyFAI.gui import jupyter
from pyFAI.test.utilstest import UtilsTest
from pyFAI.units import get_unit_fiber
import fabio
import numpy as np
from PIL import Image
from pyFAI import load
import matplotlib.pyplot as plt
import time
t0 = time.perf_counter()

WARNING:silx.opencl.common:The module pyOpenCL has been imported but can't be used here

In pyFAI:¶

x is the horizontal axis of the lab

y is the vertical axis of the lab

z is the beam propagation axis

[2]:

Image.open(UtilsTest.getimage("giwaxs.png"))

[2]:

../../_images/usage_tutorial_FiberGrazingIncidence_4_0.png

We simulate data with the calibrant LaB6¶

[3]:

cal = get_calibrant("LaB6")
det = Pilatus1M()
ai = AzimuthalIntegrator(detector=det, poni1=0.05, poni2=0.01, dist=0.1, wavelength=1e-10)
fake_data = cal.fake_calibration_image(ai=ai)

[4]:

jupyter.display(fake_data)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_7_0.png

To represent the image as a function of in-plane and out-of-plane components of the q vector¶

[5]:

unit_qx = "qxgi_nm^-1"
unit_qy = "qygi_nm^-1"
unit_qz = "qzgi_nm^-1"

[6]:

qx = ai.array_from_unit(unit=unit_qx)
qy = ai.array_from_unit(unit=unit_qy)
qz = ai.array_from_unit(unit=unit_qz)

[7]:

fig, axes = jupyter.subplots(ncols=3, figsize=(10,5))
jupyter.display(img=qx, ax=axes[0], label="q-horizontal component")
jupyter.display(img=qy, ax=axes[1], label="q-vertical component")

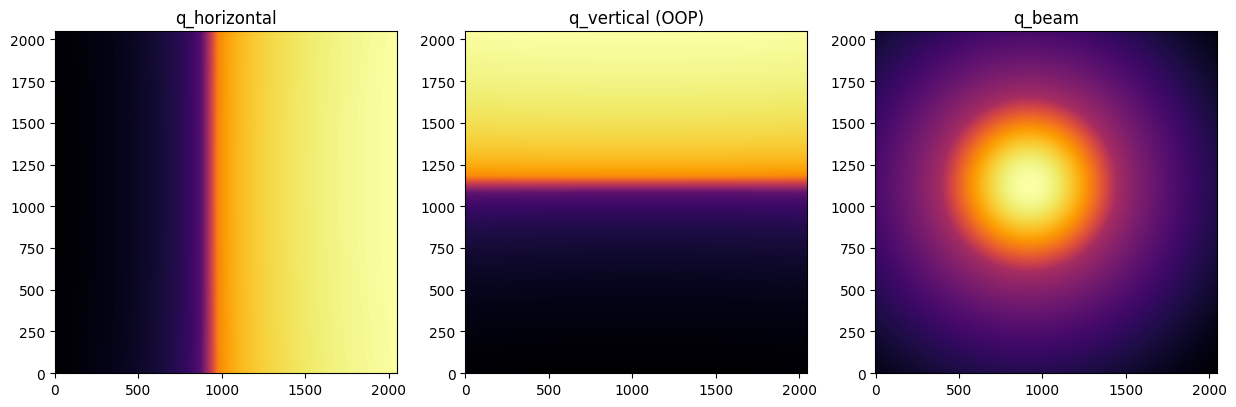

jupyter.display(img=qz, ax=axes[2], label="q-beam component")
pass

../../_images/usage_tutorial_FiberGrazingIncidence_11_0.png

[8]:

unit_qip = "qip_nm^-1"
unit_qoop = "qoop_nm^-1"
qip = ai.array_from_unit(unit=unit_qip)
qoop = ai.array_from_unit(unit=unit_qoop)

[9]:

fig, axes = jupyter.subplots(ncols=2)
jupyter.display(img=qip, ax=axes[0], label="In-plane q")
jupyter.display(img=qoop, ax=axes[1], label="Out-of-plane q")
pass

../../_images/usage_tutorial_FiberGrazingIncidence_13_0.png

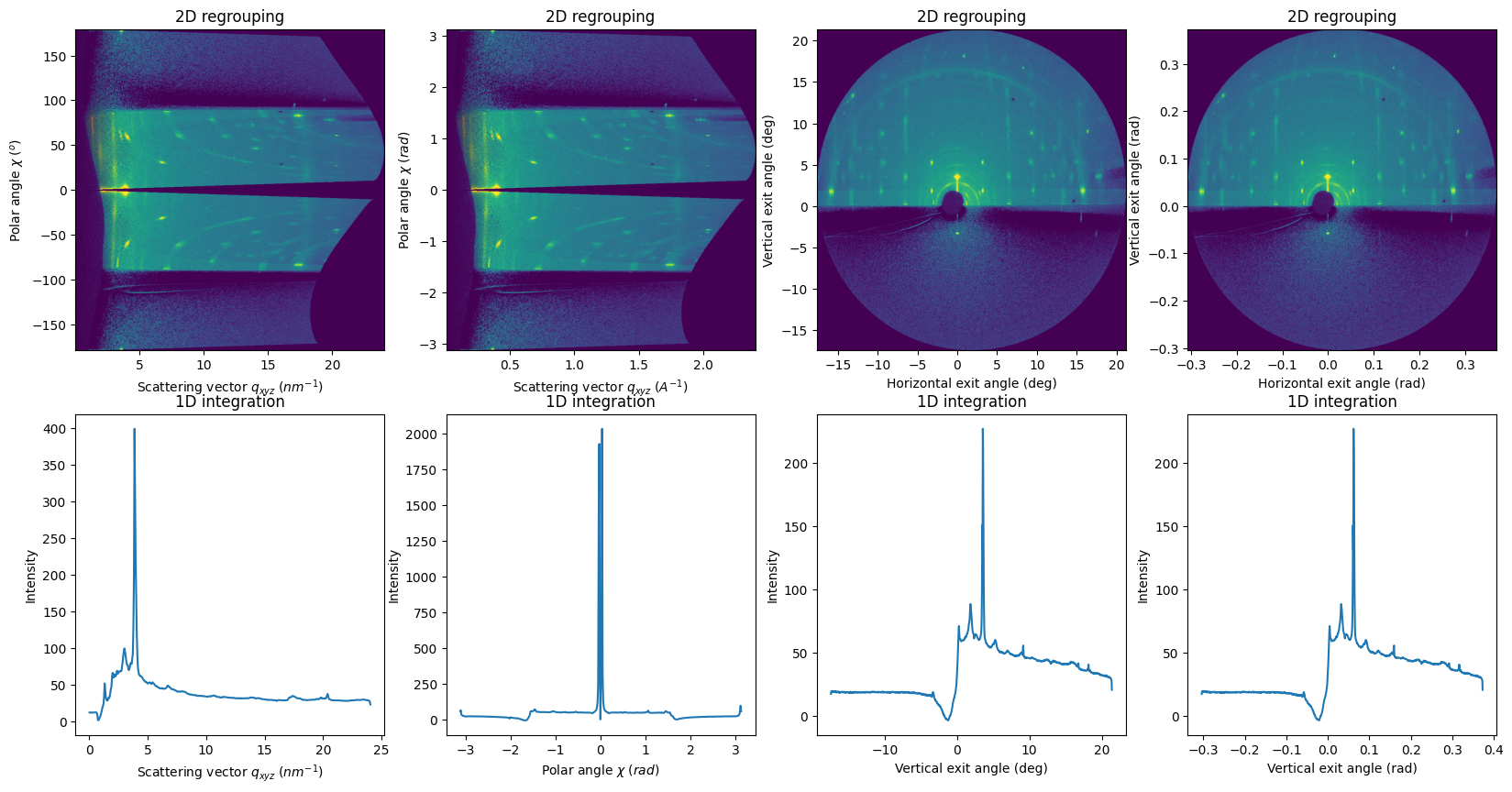

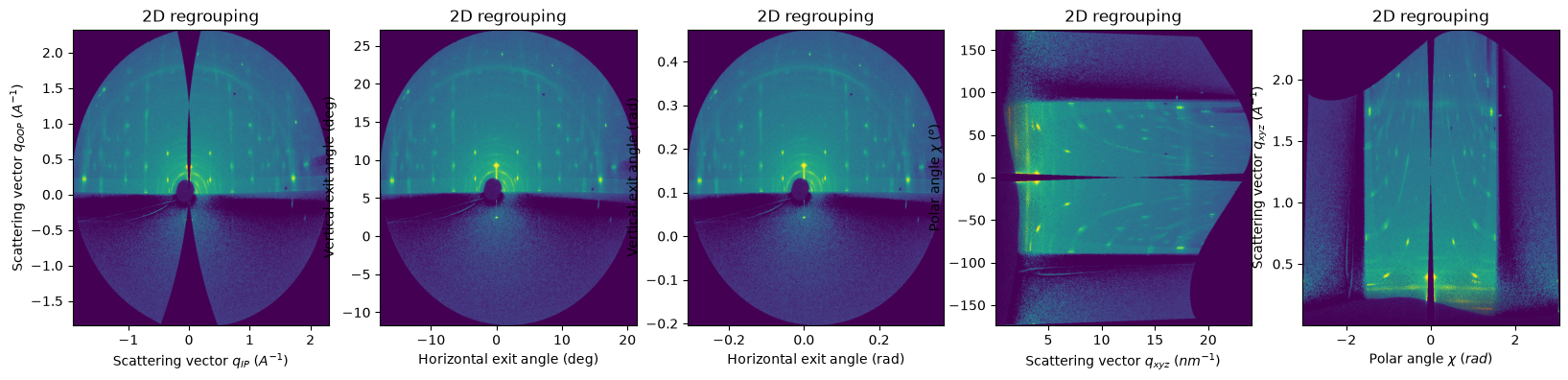

Then, GIWAXS and GISAXS patterns are represented as a function of qip and qoop¶

So, the horizontal component multiplied by the beam component yields the characteristic “missing wedge” of the pattern

[10]:

res2d = ai.integrate2d(fake_data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_15_0.png

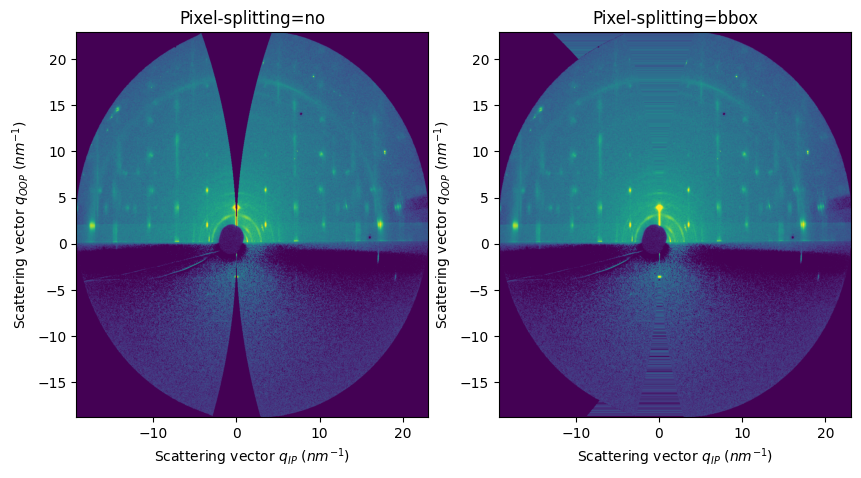

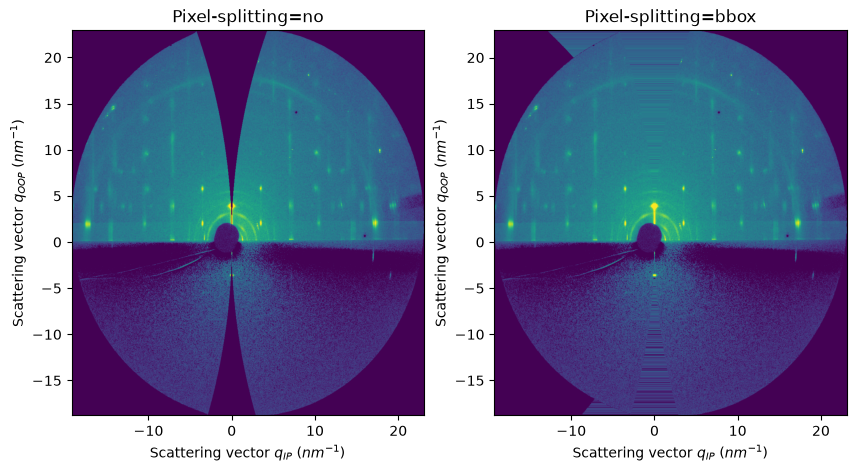

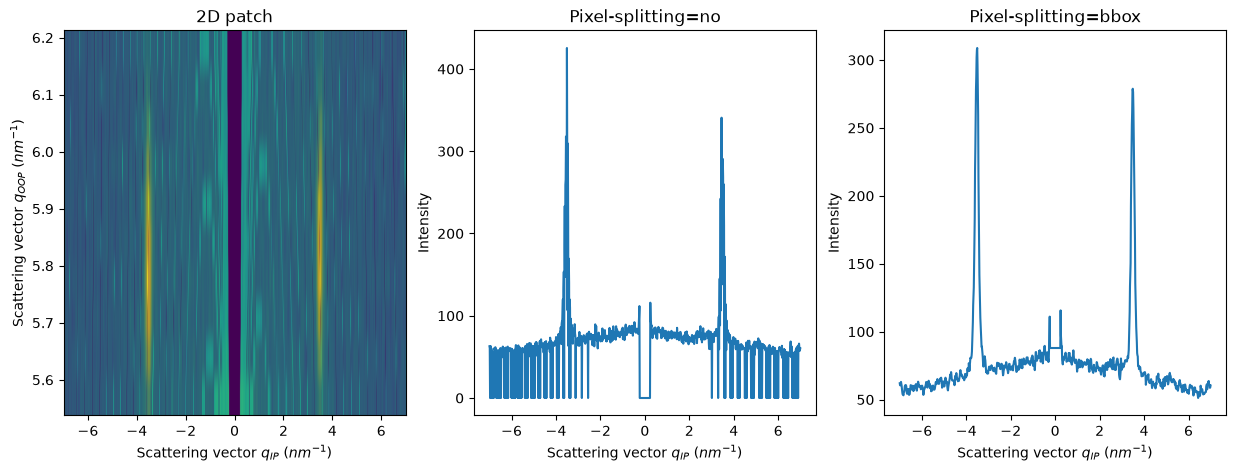

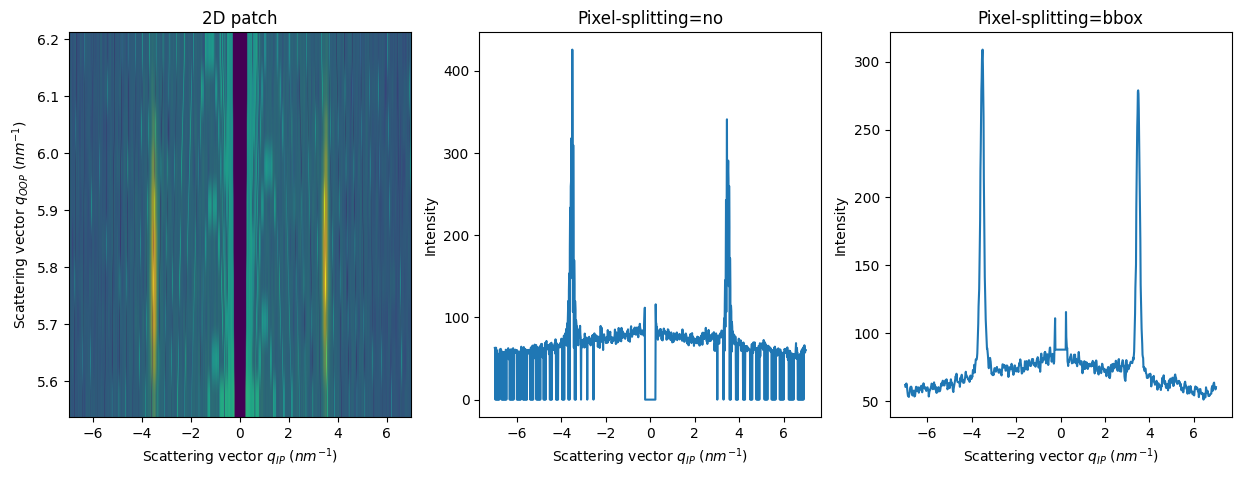

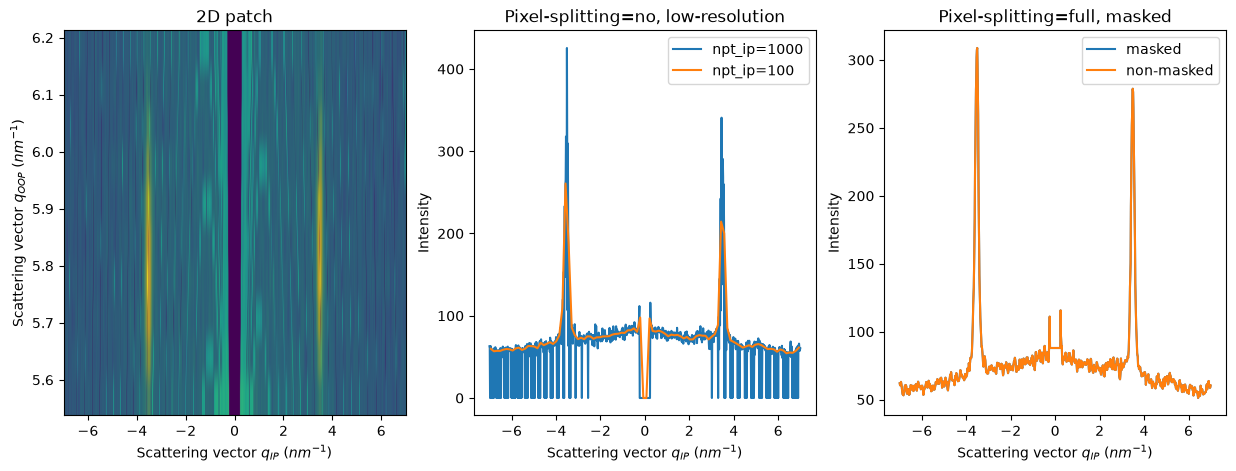

Note that is important to use a non-splitting pixel method, otherwise, the gap is filled¶

[11]:

res2d = ai.integrate2d(fake_data, 1000,1000, unit=(unit_qip, unit_qoop), method=("bbox", "csr", "cython"))
jupyter.plot2d(res2d)
pass

WARNING:pyFAI.geometry.core:No fast path for space: qip
WARNING:pyFAI.geometry.core:No fast path for space: qoop

../../_images/usage_tutorial_FiberGrazingIncidence_17_1.png

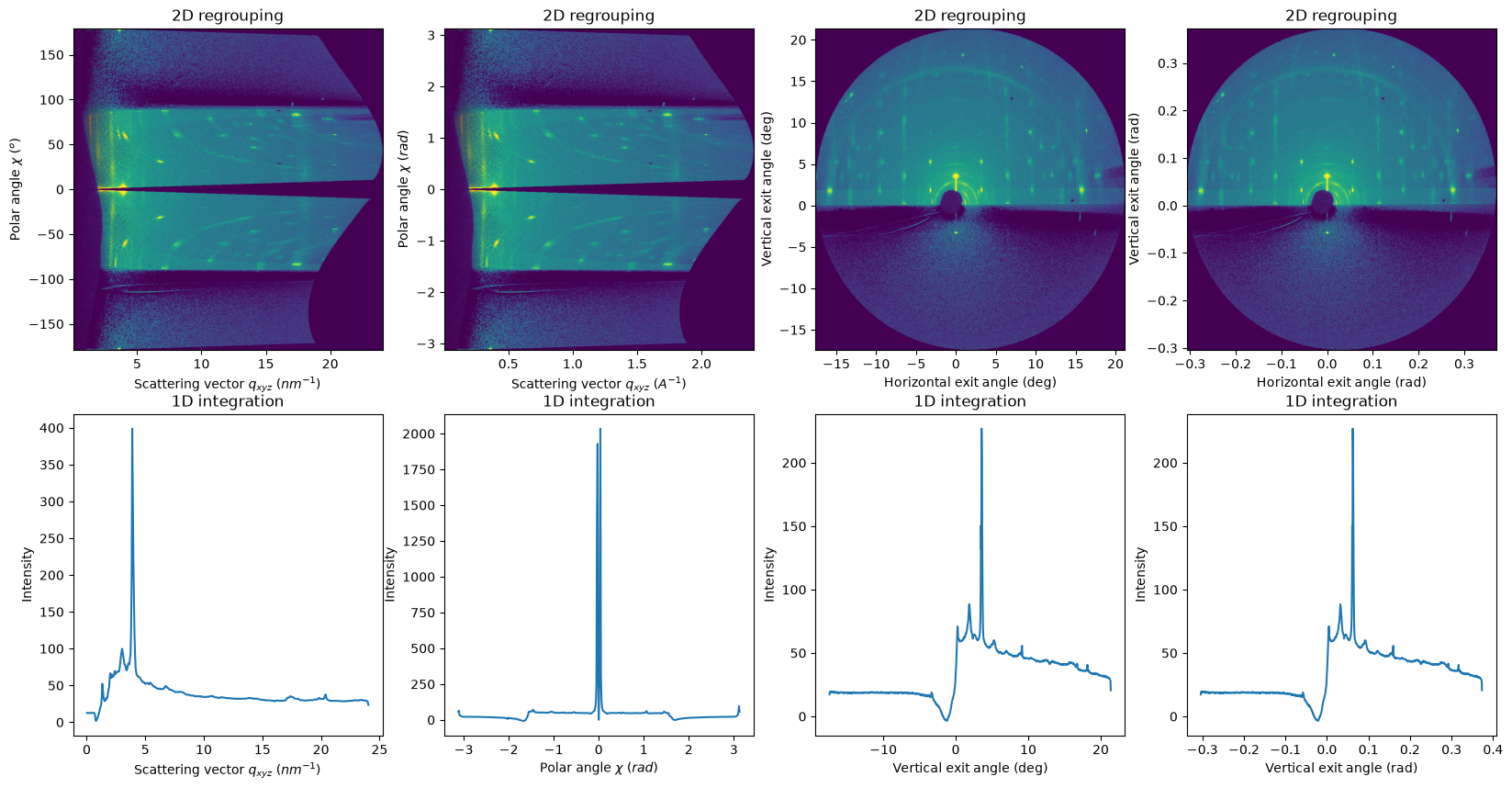

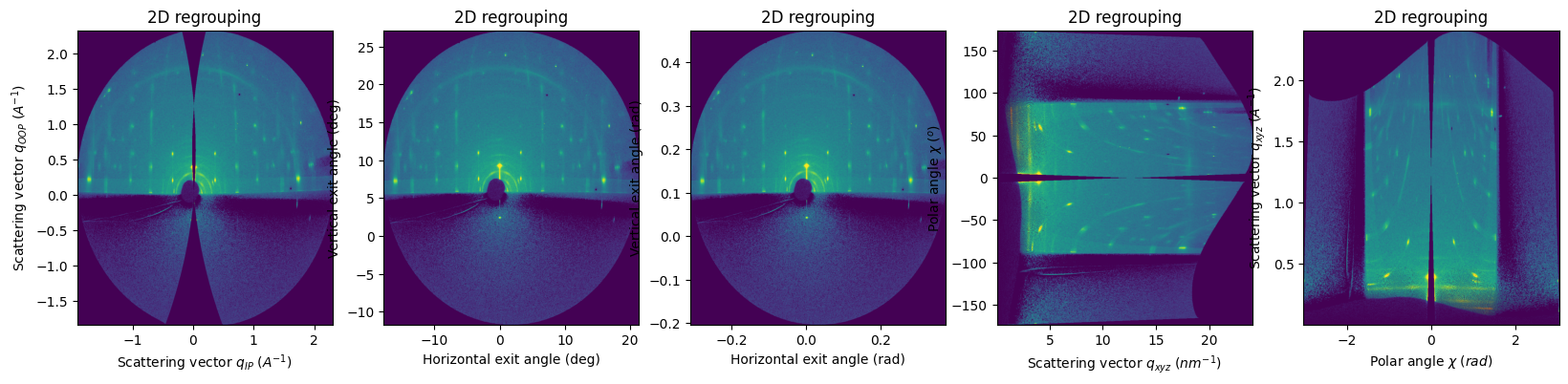

For the fiber/grazing-incidence units, pyFAI handles a special class of units called FiberUnits¶

FiberUnits can be retrieved with pyFAI.units.get_unit_fiber and they accept three input attributes: incident_angle, tilt_angle and sample_orientation

[12]:

unit_qip = get_unit_fiber(name="qip_nm^-1", incident_angle=0.2, tilt_angle=0.4, sample_orientation=1)
unit_qoop = get_unit_fiber(name="qoop_nm^-1", incident_angle=0.2, tilt_angle=0.4, sample_orientation=1)
ai.reset()

[13]:

res2d = ai.integrate2d(fake_data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_20_0.png

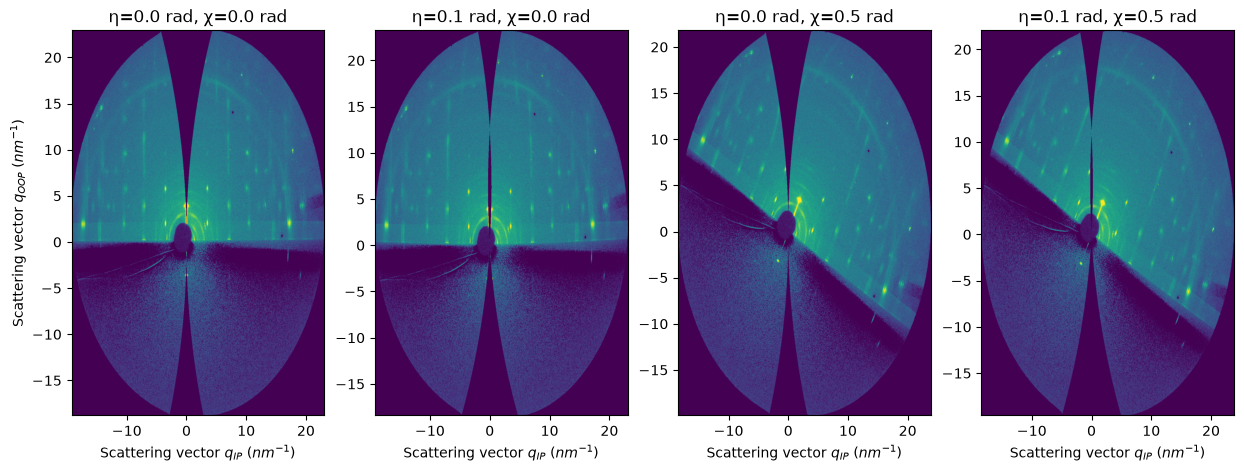

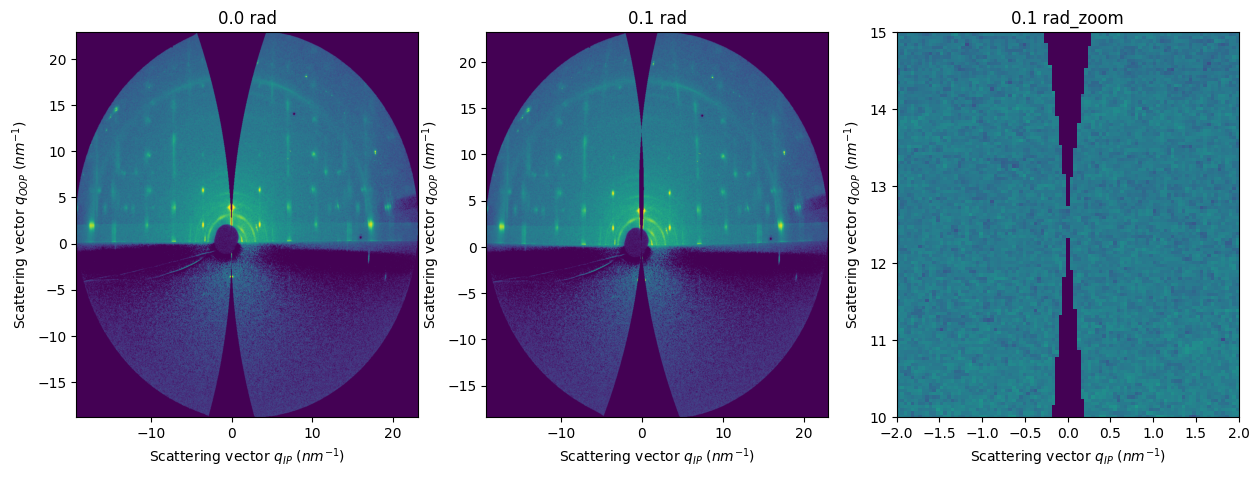

Now the patterns looks tilted due to tilt_angle and the available region in the reciprocal space has been shifted¶

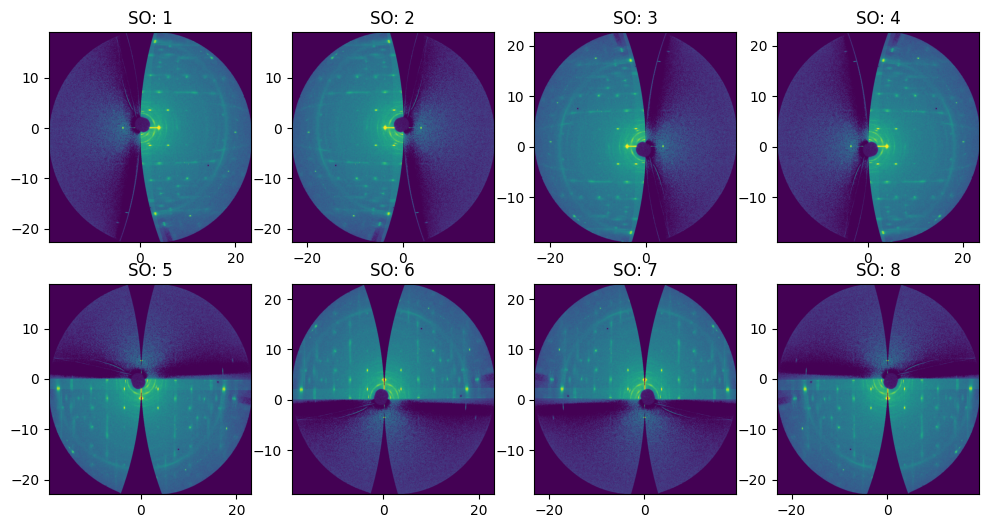

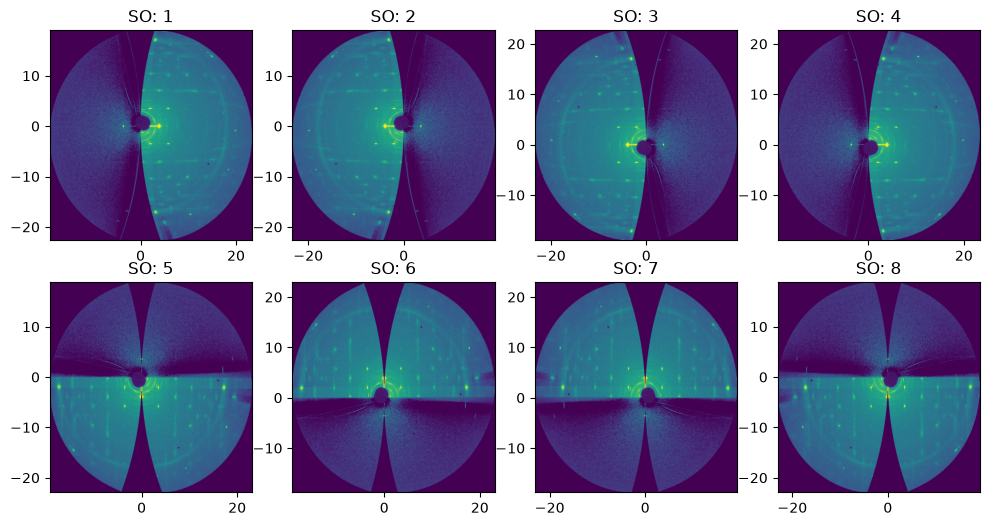

The attribute sample_orientation takes into account the n*90 degrees difference between the fiber axis and the vertical axis of the detector¶

The differences are better spotted with an elongated detector

[14]:

det = RayonixLx255()
ai = AzimuthalIntegrator(detector=det, poni1=0.05, poni2=0.01, dist=0.1, wavelength=1e-10)
fake_data = cal.fake_calibration_image(ai=ai)
ai.reset()

[15]:

unit_qip.set_sample_orientation(1)
unit_qip.set_incident_angle(0.0)
unit_qip.set_tilt_angle(0.0)
unit_qoop.set_sample_orientation(1)
unit_qoop.set_incident_angle(0.0)
unit_qoop.set_tilt_angle(0.0)
ai.reset()

In this case, the incident angle goes with the short side of the detector¶

[16]:

res2d = ai.integrate2d(fake_data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_27_0.png

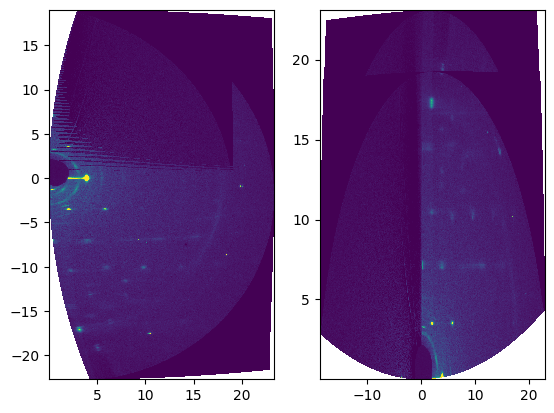

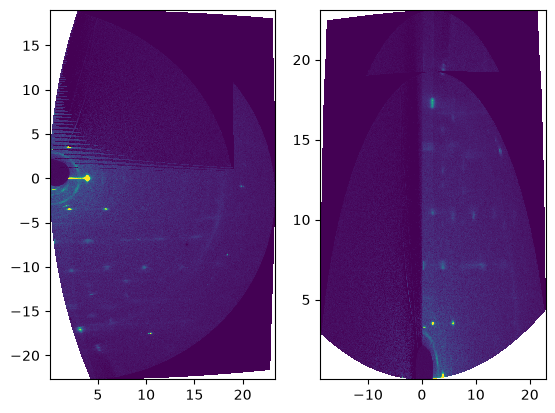

Now, if we rotate the fiber axis 90 degrees, (sample_orientation=2)¶

[17]:

unit_qip.set_sample_orientation(2)
unit_qoop.set_sample_orientation(2)
ai.reset()

[18]:

res2d = ai.integrate2d(fake_data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_30_0.png

Example with real GIWAXS data¶

[19]:

data = fabio.open(UtilsTest.getimage("pm6.edf")).data
ai = load(UtilsTest.getimage("lab6_pm6.poni"))

We are still using sample_orientation=2¶

[20]:

unit_qip.sample_orientation, unit_qoop.sample_orientation

[20]:

(2, 2)

[21]:

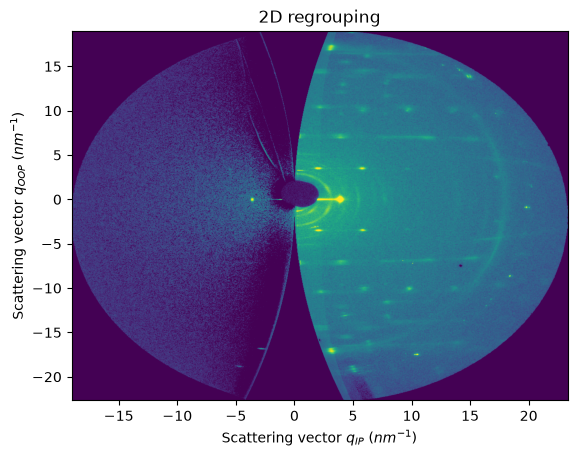

res2d = ai.integrate2d(data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d)
pass

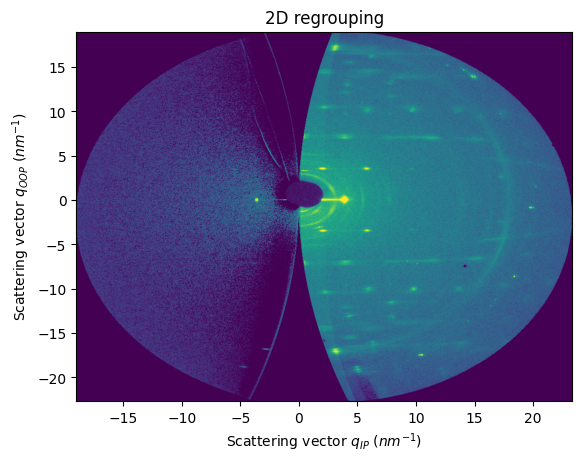

../../_images/usage_tutorial_FiberGrazingIncidence_35_0.png

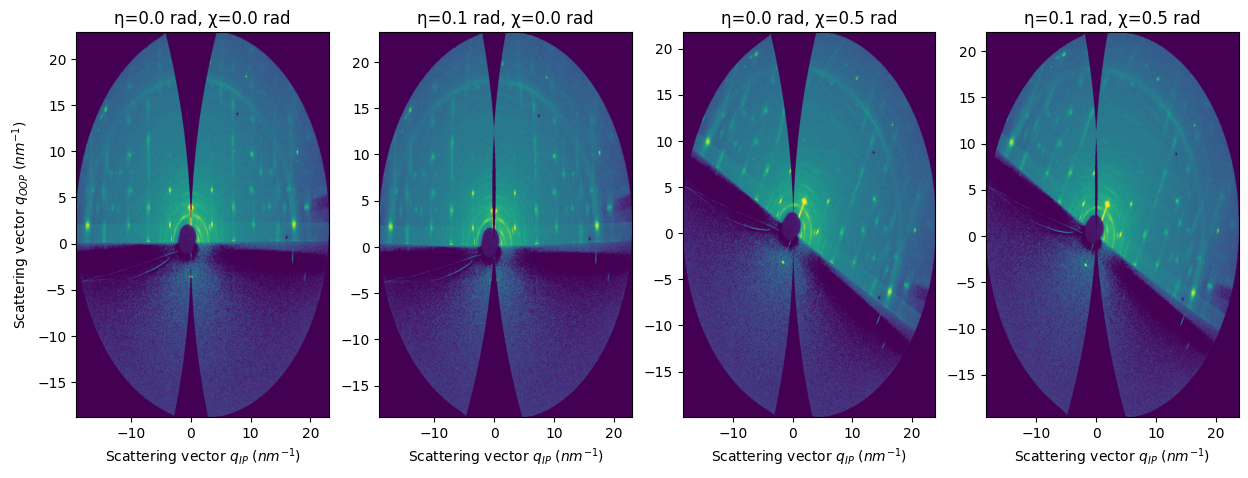

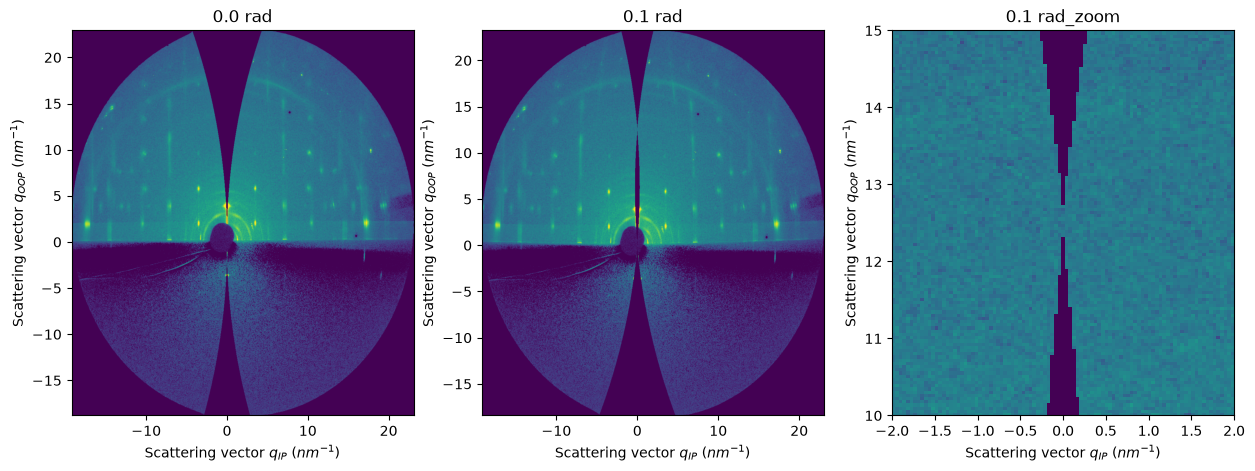

Tuning the incident and tilt angles:¶

[22]:

INCIDENT_ANGLE = 0.2
TILT_ANGLE = -0.3
unit_qip.set_incident_angle(INCIDENT_ANGLE)
unit_qip.set_tilt_angle(TILT_ANGLE)
unit_qoop.set_incident_angle(INCIDENT_ANGLE)
unit_qoop.set_tilt_angle(TILT_ANGLE)
ai.reset()

[23]:

res2d = ai.integrate2d(data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_38_0.png

Integration along a specific fiber unit¶

For analysis of fiber/grazing-incidence data, sometimes we need to slice the pattern along the q-oop axis, to get a set of Bragg peaks, this cannot be done using the standard cake integration

Let’s take a GIWAXS pattern collected after illuminating a crystallized semiconducting organic thin film¶

[24]:

data = fabio.open(UtilsTest.getimage("y6.edf")).data
ai = load(UtilsTest.getimage("LaB6_3.poni"))
INCIDENT_ANGLE = 0.0
TILT_ANGLE = 0.0
unit_qip.set_incident_angle(INCIDENT_ANGLE)
unit_qip.set_tilt_angle(TILT_ANGLE)
unit_qoop.set_incident_angle(INCIDENT_ANGLE)
unit_qoop.set_tilt_angle(TILT_ANGLE)
ai.reset()

[25]:

fig, ax = jupyter.subplots()
res2d = ai.integrate2d(data, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d, ax=ax)
ax.set_ylim((0,20))
pass

../../_images/usage_tutorial_FiberGrazingIncidence_43_0.png

[26]:

cax = ax.get_children()[0]
cbar = fig.colorbar(cax)
cbar.norm.vmin = 10
cbar.norm.vmax = 1e3
ax.get_figure()

[26]:

../../_images/usage_tutorial_FiberGrazingIncidence_44_0.png

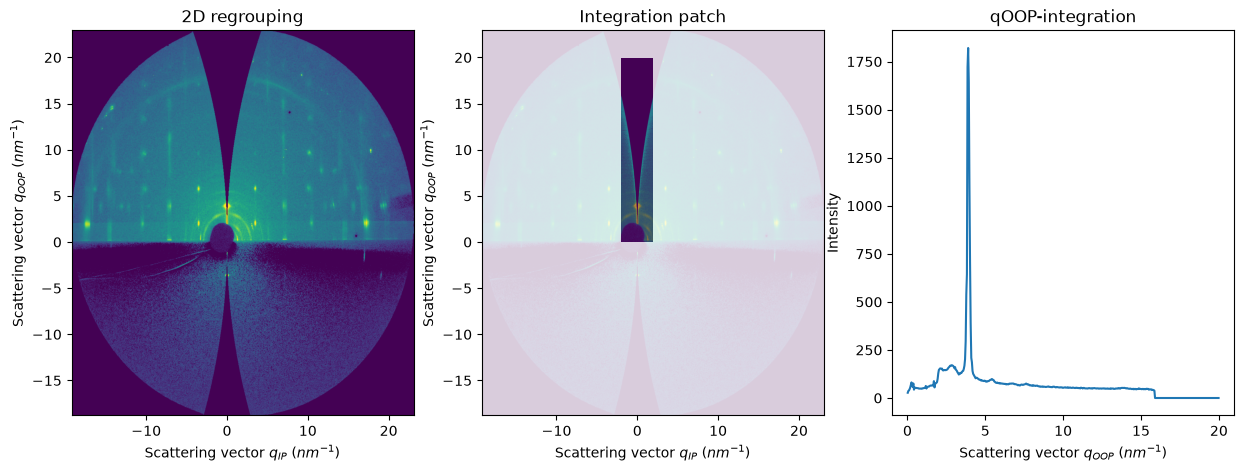

In this case, a cake integration is not accurate to capture, for example, the Bragg peaks rods at qIP=7 and 10 nm-1¶

Now, pyFAI allows to do this with the method pyFAI.AzimuthalIntegrator.integrate_fiber

[27]:

res_q7 = ai.integrate_fiber(data=data,
                         output_unit=unit_qoop,
                         npt_output=1000,
                         output_unit_range=[0,20],
                         integrated_unit=unit_qip,
                         integrated_unit_range=[7,7.2],
                         npt_integrated=100,
                        )

res_q10 = ai.integrate_fiber(data=data,
                         output_unit=unit_qoop,
                         npt_output=1000,
                         output_unit_range=[0,20],
                         integrated_unit=unit_qip,
                         integrated_unit_range=[10,10.5],
                         npt_integrated=100,
                        )

WARNING:pyFAI.geometry.core:No fast path for space: qip
WARNING:pyFAI.geometry.core:No fast path for space: qoop

[28]:

fig, ax = jupyter.subplots()
jupyter.plot1d(res_q7, label="qIP=7", ax=ax)
jupyter.plot1d(res_q10, label="qIP=10", ax=ax)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_47_0.png

To have a clear idea of what we are integrating here, we can visualize directly the matrix¶

[29]:

arr_qip = ai.array_from_unit(shape=data.shape, unit=unit_qip)
arr_qoop = ai.array_from_unit(shape=data.shape, unit=unit_qoop)
arr_qip_7 = np.logical_and(arr_qip > 7.0, arr_qip < 7.2)
arr_qoop_0_20 = np.logical_and(arr_qip > 0.0, arr_qip < 20.0)
data_masked = data * arr_qip_7 * arr_qoop_0_20

[30]:

fig, ax = plt.subplots()
ax.imshow(data_masked, vmin=0, vmax=100)
ax.imshow(data, alpha=0.4, vmin=0, vmax=500, cmap="grey")
pass

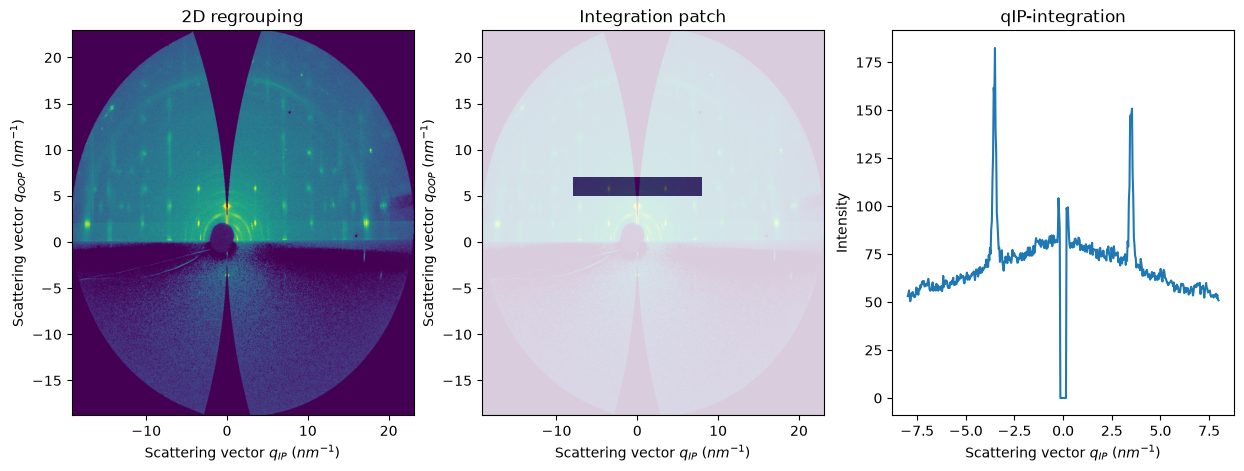

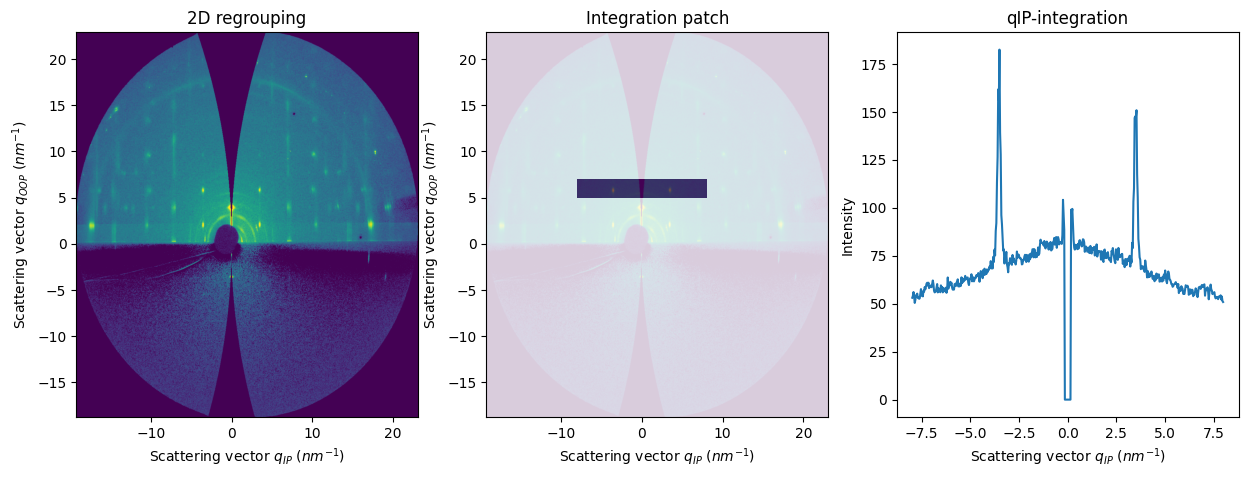

../../_images/usage_tutorial_FiberGrazingIncidence_50_0.png

[31]:

fig, ax = jupyter.subplots()
res2d = ai.integrate2d(data_masked, 1000,1000, unit=(unit_qip, unit_qoop), method=("no", "csr", "cython"))
jupyter.plot2d(res2d, ax=ax)
ax.set_ylim((0,20))
pass

../../_images/usage_tutorial_FiberGrazingIncidence_51_0.png

[32]:

cax = ax.get_children()[0]
cbar = fig.colorbar(cax)
cbar.norm.vmin = 10
cbar.norm.vmax = 1e3
ax.get_figure()

[32]:

../../_images/usage_tutorial_FiberGrazingIncidence_52_0.png

We are capturing a rectangular slice from the qip-qoop pattern, or a straight section of the Q-space in the sample frame¶

The integration is generic, we can even extract the slice along the Qoop axis¶

[33]:

res_q2p5 = ai.integrate_fiber(data=data,
                         output_unit=unit_qip,
                         npt_output=1000,
                         output_unit_range=[-18,18],
                         integrated_unit=unit_qoop,
                         integrated_unit_range=[2,2.5],
                         npt_integrated=100,
                        )

[34]:

fig, ax = jupyter.subplots()
jupyter.plot1d(res_q2p5, label="qOOP=2.5", ax=ax)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_56_0.png

[35]:

arr_qoop_2p5 = np.logical_and(arr_qoop > 2.0, arr_qoop < 2.5)
arr_qip_m18_18 = np.logical_and(arr_qip > -18.0, arr_qip < 18.0)
data_masked_2 = data * arr_qip_m18_18 * arr_qoop_2p5

fig, ax = plt.subplots()
ax.imshow(data_masked_2, vmin=0, vmax=100)
ax.imshow(data, alpha=0.4, vmin=0, vmax=500, cmap="grey")
pass

../../_images/usage_tutorial_FiberGrazingIncidence_57_0.png

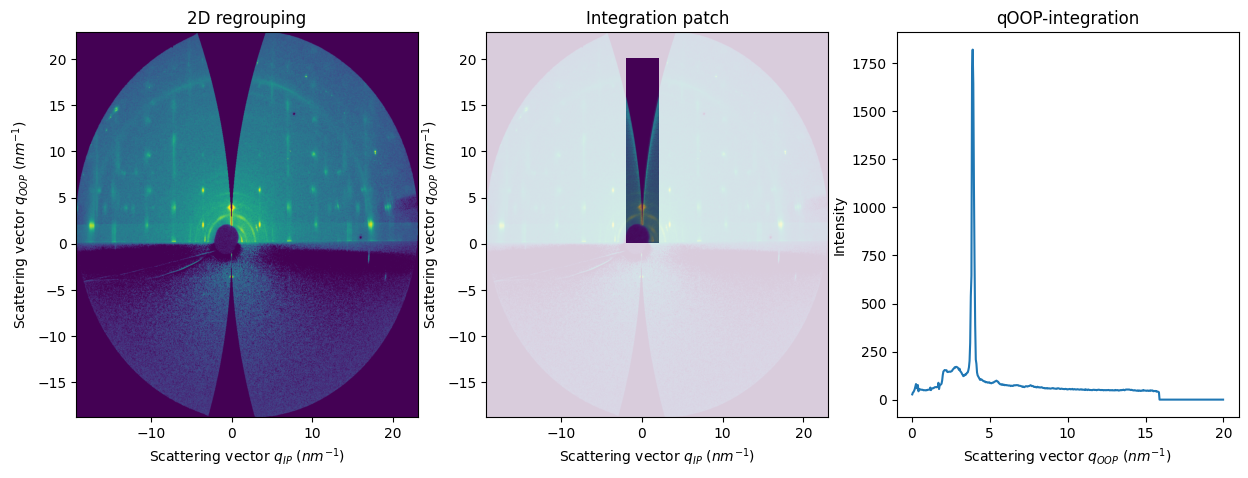

Finally, the method pyFAI.AzimuthalIntegrator.integrate_grazing_incidence allows to call the units directly with the incident_angles, tilt_angles and sample_orientation¶

This way, we don’t have to care about instantiating the UnitFiber and then changing the attributes

[36]:

res_1 = ai.integrate_grazing_incidence(data=data,
                                       incident_angle=0.0,
                                       tilt_angle=0.0,
                                       sample_orientation=2,
                                       output_unit="qoop_nm^-1",
                                       npt_output=1000,
                                       output_unit_range=[0,20],
                                       integrated_unit="qip_nm^-1",
                                       integrated_unit_range=[-2.5,2.5],
                                       npt_integrated=100,
                                    )

res_2 = ai.integrate_grazing_incidence(data=data,
                                       incident_angle=np.deg2rad(0.2),
                                       tilt_angle=0.0,
                                       sample_orientation=2,
                                       output_unit="qoop_nm^-1",
                                       npt_output=1000,
                                       output_unit_range=[0,20],
                                       integrated_unit="qip_nm^-1",
                                       integrated_unit_range=[-2.5,2.5],
                                       npt_integrated=100,
                                    )

res_3 = ai.integrate_grazing_incidence(data=data,
                                       incident_angle=np.deg2rad(0.2),
                                       tilt_angle=np.deg2rad(45),
                                       sample_orientation=2,
                                       output_unit="qoop_nm^-1",
                                       npt_output=1000,
                                       output_unit_range=[0,20],
                                       integrated_unit="qip_nm^-1",
                                       integrated_unit_range=[-2.5,2.5],
                                       npt_integrated=100,
                                    )

WARNING:pyFAI.geometry.core:No fast path for space: qip
WARNING:pyFAI.geometry.core:No fast path for space: qoop
WARNING:pyFAI.geometry.core:No fast path for space: qip
WARNING:pyFAI.geometry.core:No fast path for space: qoop
WARNING:pyFAI.geometry.core:No fast path for space: qip
WARNING:pyFAI.geometry.core:No fast path for space: qoop

[37]:

fig, ax = jupyter.subplots()
jupyter.plot1d(res_1, label="incident_angle=0.0", ax=ax)
jupyter.plot1d(res_2, label="incident_angle=0.2º", ax=ax)
jupyter.plot1d(res_3, label="tilt_angle=45º", ax=ax)
pass

../../_images/usage_tutorial_FiberGrazingIncidence_61_0.png

[38]:

print(f"Total run-time: {time.perf_counter()-t0:.3f}s")

Total run-time: 56.828s

Conclusions¶

Now, PyFAI provides the units to represent a data array as a function of in-plane and out-of-plane components of vector q. This is a standard way of represent GIWAXS/GISAXS or fiber diffraction patterns. FiberUnits can be retrieved with a special method and the incident angle, tilt angle and sample orientation parameters can be defined and updated at the moment. Moreover, the methods integrate_fiber and integrate_grazing_incidence allow to get straight slices from the Qip-Qoop patterns.
